Description
- Tiltable Surface Light Linear
- Die Cast Aluminum Housing
- Pre - treated Powder Coating for corrosion resistance
- SS304 Grade External & Internal Fasteners used for corrosion resistance
- Optical Grade PC Anti Glare Black Reflector
- Polycarbonate Lens Used
- Built In Control Gear
- Tilt Angle: 45° Both Side
- Mounting - Surface Mounting
Mechanical Details
Model | Tiltable Surface Light Linear |
Material | Aluminum |
Finish | Black / White |

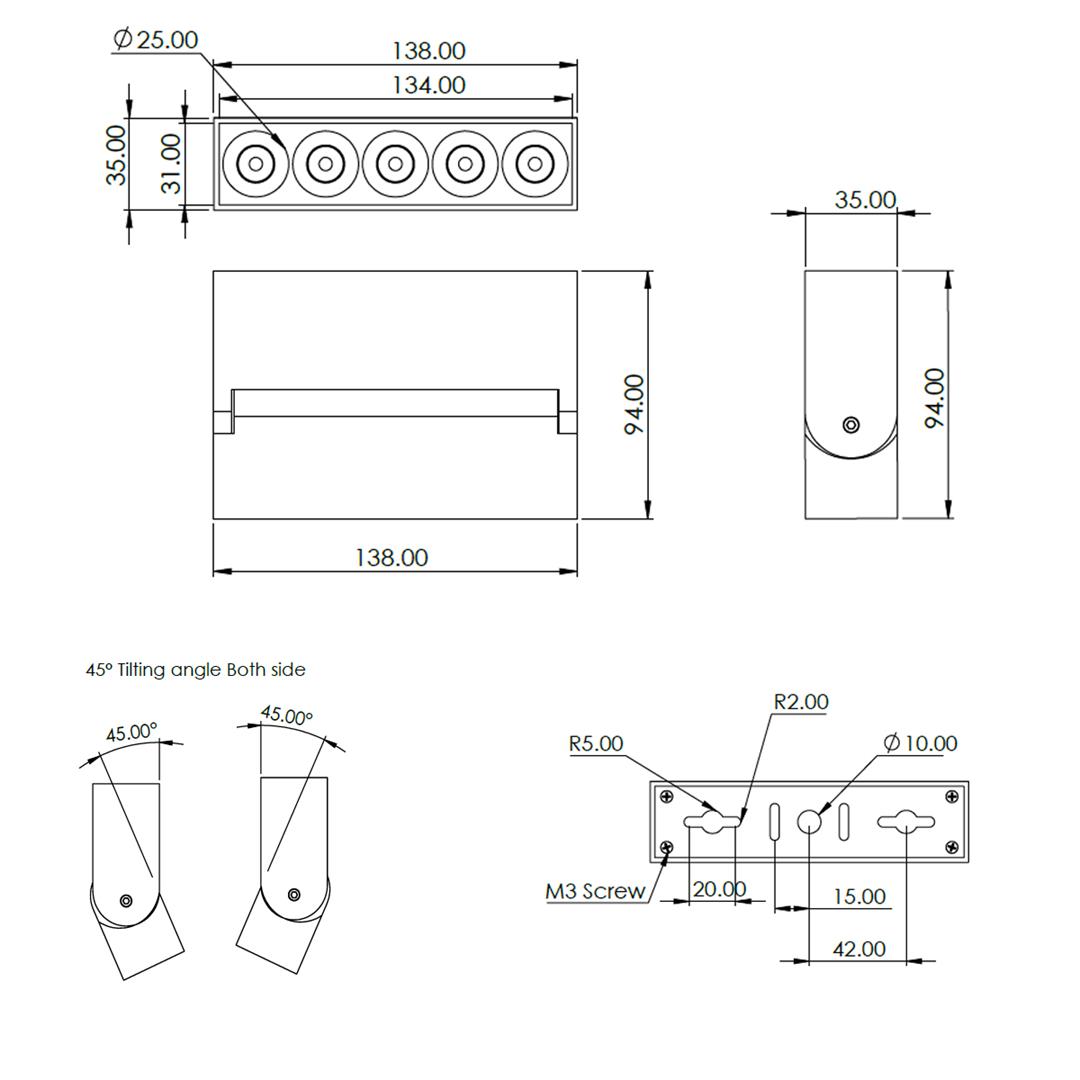

Size | L138 X W35 X H94 |
Rotation and Tilt | 45° Tiltable Both Side |
Weight | 0.380kg |
IP Rating | IP20 |
Technical Details
Input Power
| 6W
|
Light Source
| LED
|
Color Temperature
| 2700K / 3000K / 4000K / 6000K
|
Light O/p
| 264 / 276 / 288 / 300 lm
|
Efficacy
| 44 / 46 / 48 / 50 Lm/W
|
CRI
| 80+
|
MacAdam
| <3
|
Beam Angle
| 34°
|
Input Voltage
| 220-240 VAC
|
Driving System
| Constant Current
|
Dimming Type
| ON / OFF
|
Operating Temperature
| -10 to 50°C
|
LED Life
| L70 at 50000 burning Hours
|
| System Warranty | 1 Year |
Model
| Fixture Color
| Light source
| Luminous flux
| Beam angle
|
TSLL06M27B
| B-BLACK
| 5 X 1.2W 2700K LED
| 264
| 34°
|
TSLL06M30B
| B-BLACK
| 5 X 1.2W 3000K LED
| 276
| 34°
|
TSLL06M40B
| B-BLACK
| 5 X 1.2W 4000K LED
| 288
| 34°
|
TSLL06M60B
| B-BLACK
| 5 X 1.2W 6000K LED
| 300
| 34°
|
TSLL06M27W
| W-WHITE
| 5 X 1.2W 2700K LED
| 264
| 34°
|
TSLL06M30W
| W-WHITE
| 5 X 1.2W 3000K LED
| 276
| 34°
|
TSLL06M40W
| W-WHITE
| 5 X 1.2W 4000K LED
| 288
| 34°
|
TSLL06M60W
| W-WHITE
| 5 X 1.2W 6000K LED
| 300
| 34°
|
