Description
SS Housing & SS 304 Grade Trim For Corrosion resistance.
Pressure Die cast Aluminium Heatsink Used for Heat Dissipation.
Frosted Glass Used.
Silicone External O ring Used.
Epoxy Sealant used for complete water tight.
High Lumen LEDs used.
SS cable Gland Used.
External Constant Voltage Power Supply (IP68 / IP20).

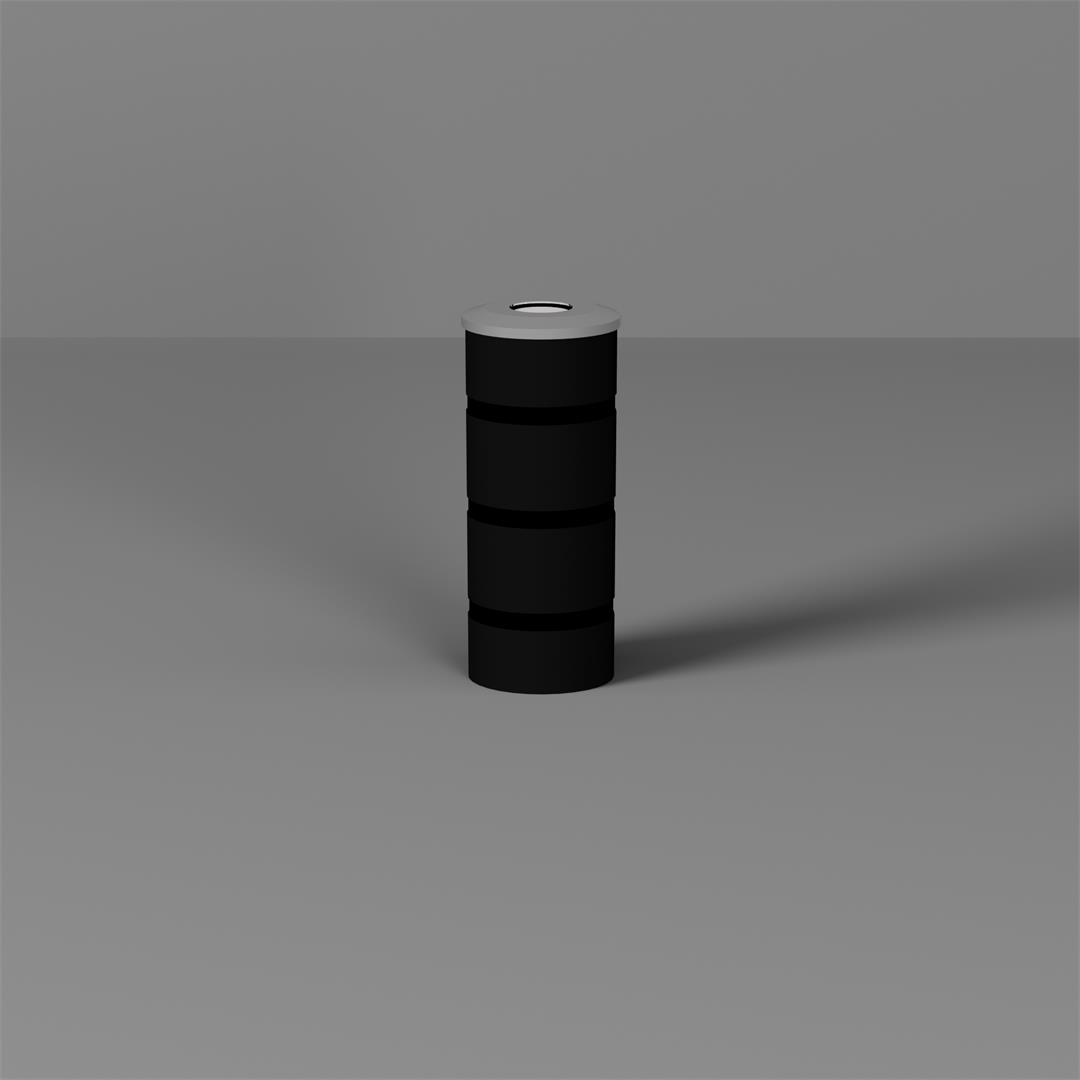

SS Recessing Box for easy Installation Inground.
IP67 Wired Connector Used.
Protection : IP67

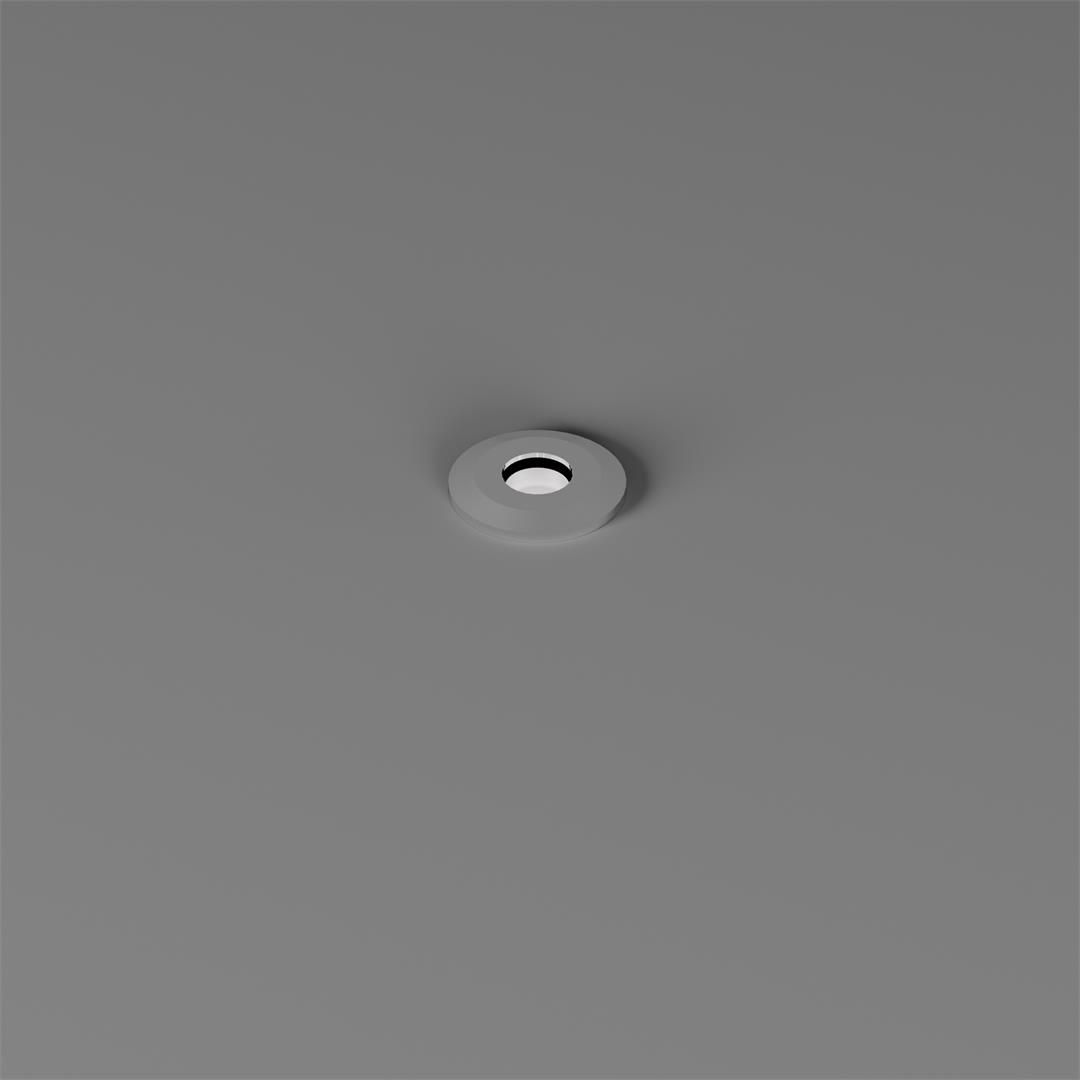

Mounting : Inground Recessed.
USP
-Unique Minimalist Design with SS Housing for high corrosion & weight resistance.
-Frosted Glass For smooth Light Spread Without Glare.

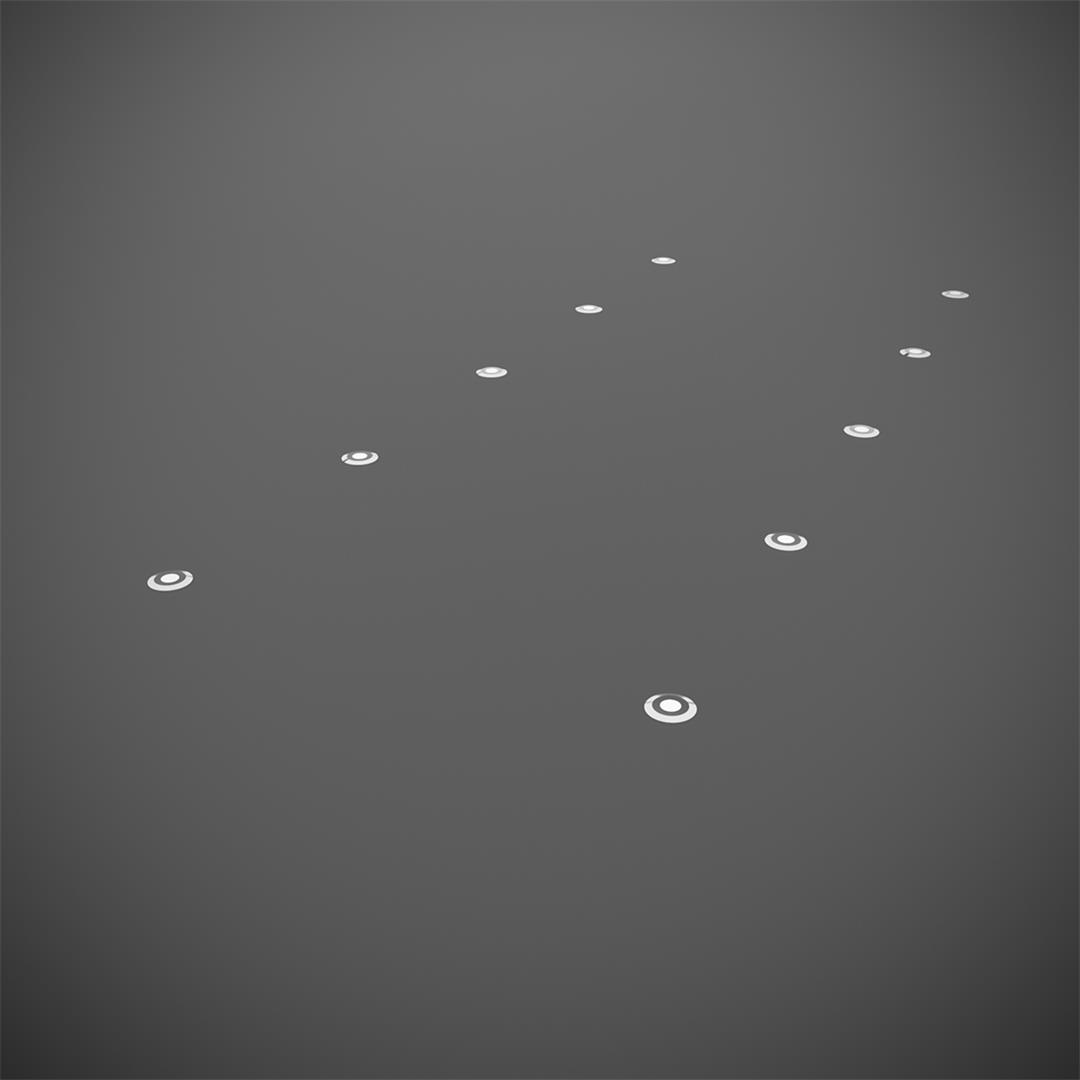

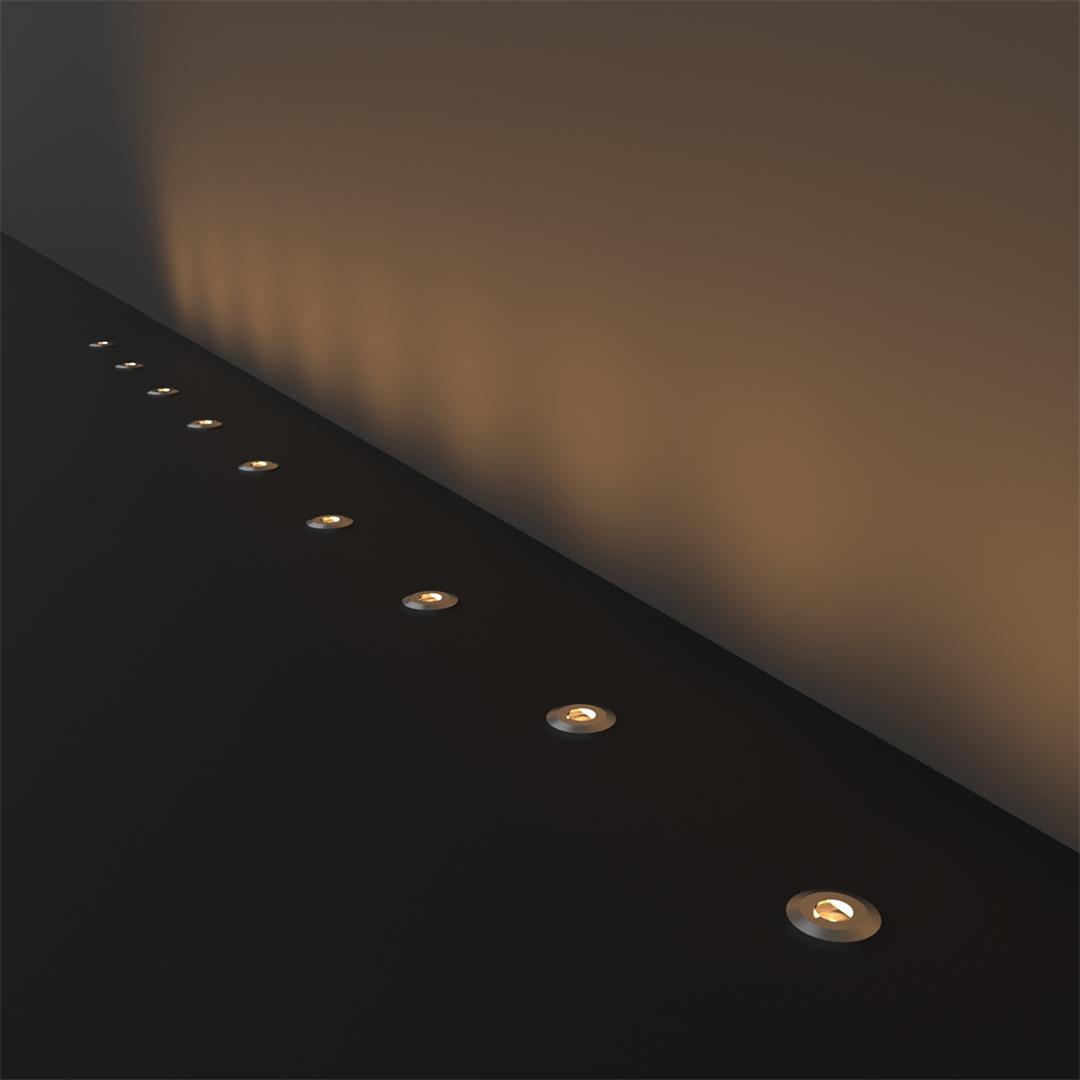

-Marker Light Application With IP67 Loop In Connectors .
-SS Body Design with Silicone O rings Internal & External For Long Lasting Application.
-SELV 24VDC For Shock Proof Application.
-Easy Installation With IP67 Connectors.
Mechanical Details
Material
| Stainless steel
|
Finish
| Chrome
|
Size

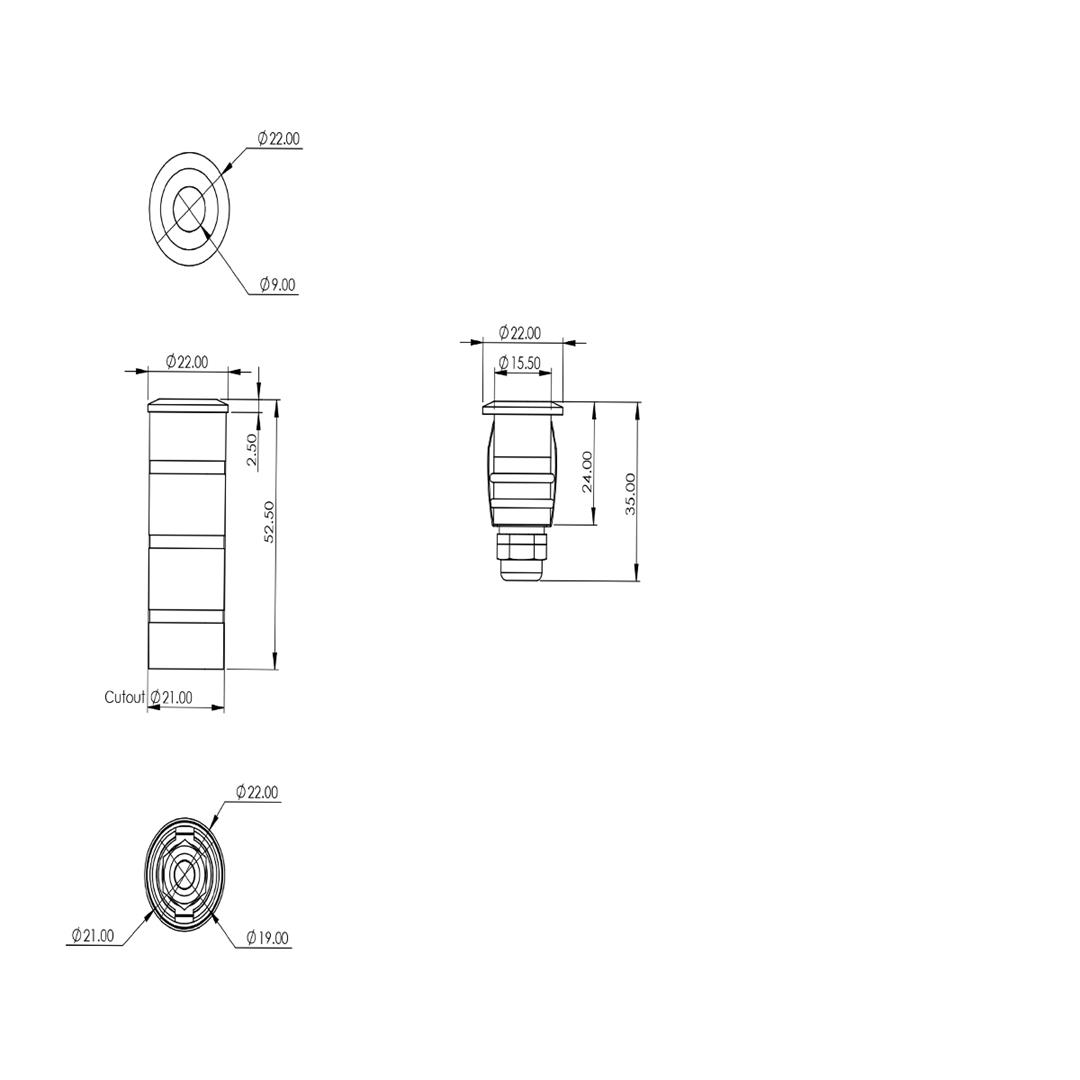

| Ø22X35mm (With Recessing Box Height - 52.5mm)
|
Cutout
| Ø21mm
|
Glass
| Polycarbonate Frost Glass
|
Cable Entry
| Single / Loop - In Loop - Out
|
Cable Gland
| SS
|
Power Supply
| External SMPS 24VDC
|
Connector

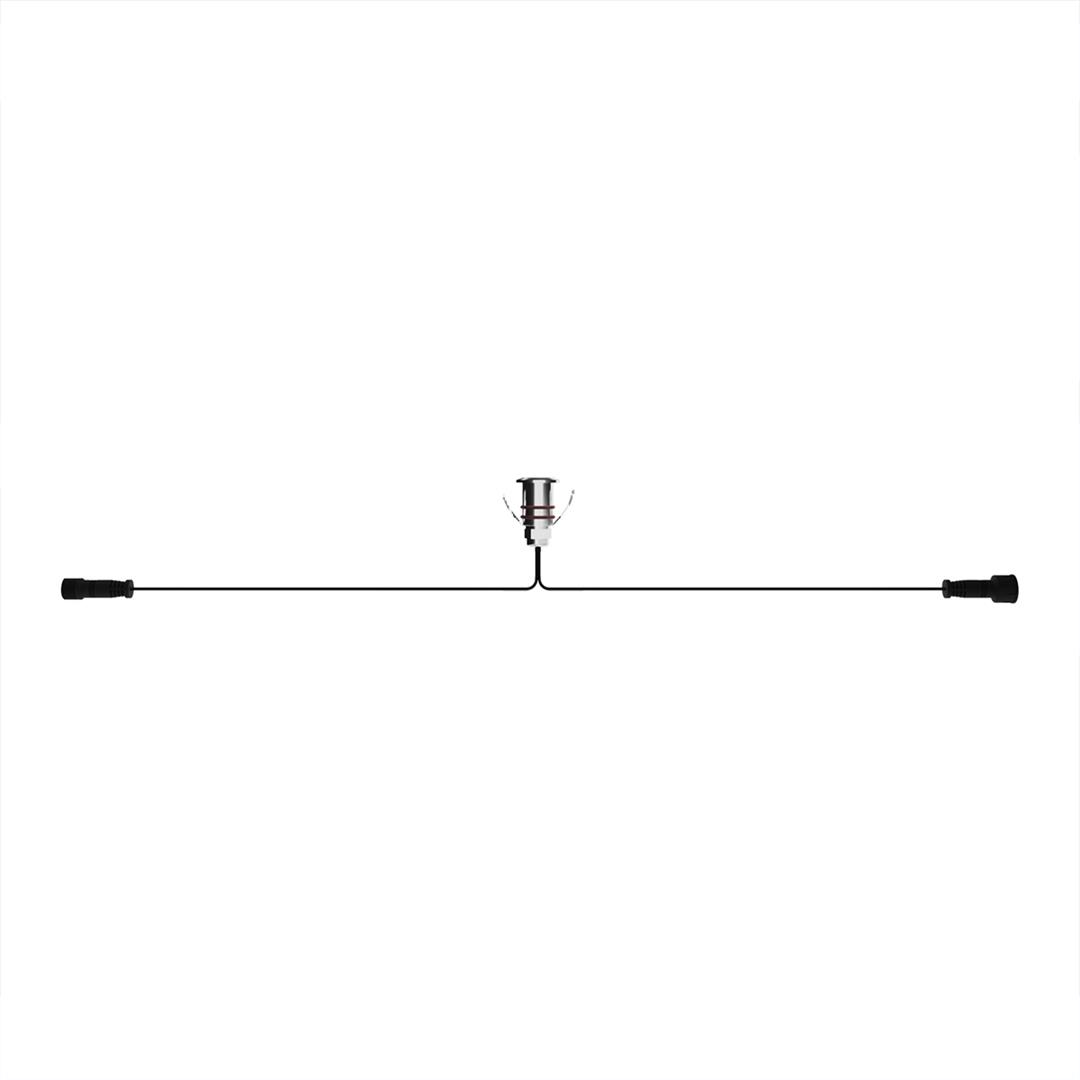

| Loop In - IP67 Wired Connector Male (Length - 450mm) Loop Out - IP67 Wired Connector Female (Length - 450mm) |
IP Rating
| IP67
|
Weight
| 0.02Kg
|
|---|
Technical Details
Lamp
| LED |
| Input Power | 0.5W |
Color Temperature
| 3000K
|
Lumen
| 44 LM
|
Efficacy
| 88 LM/W
|
|---|
Beam Angle
| 95°
|
|---|
Input Voltage
| 24VDC
|
|---|
Driving System
| Constant Voltage |
Dimming Type
| ON / OFF , DALI Diming , R.F. Diming
|
CRI
| 80+ |
MacAdam
| <3
|
Operating Temperature
| -10 to 50°C
|
LED Life
| L70 at 50000 burning Hours
|
Safety Class
| Class III (SELV )
|
System Warranty
| 1 Year
|
| Model | Fixture Colour | POWER | CCT(K) | Luminous flux | Beam angle | Control | Cable |
| IGRS0.5W30CV- | S-Stainless Steel | 0.5W | 1*0.5W LED
(3000K) | 44 lm | WIDE - 95° | CV - Constant Voltage | S-Single Entry |
| IGRS0.5W30CVL | S-Stainless Steel | 0.5W | 1*0.5W LED
(3000K) | 44 lm | WIDE - 95° | CV - Constant Voltage | L-Loop In Loop Out |
SMPS Calculator
Total Lamps
| SMPS SUITABLE |
1 TO 15 LAMPS Looped
| SM24030V(30W 24VDC)( IP68/IP20 As Per Application) |
Accessories
*IP68 Connnector(Add Image)
*IP67 Conncetor (Add Image)
*35W SMPS (Add Image )
