Description

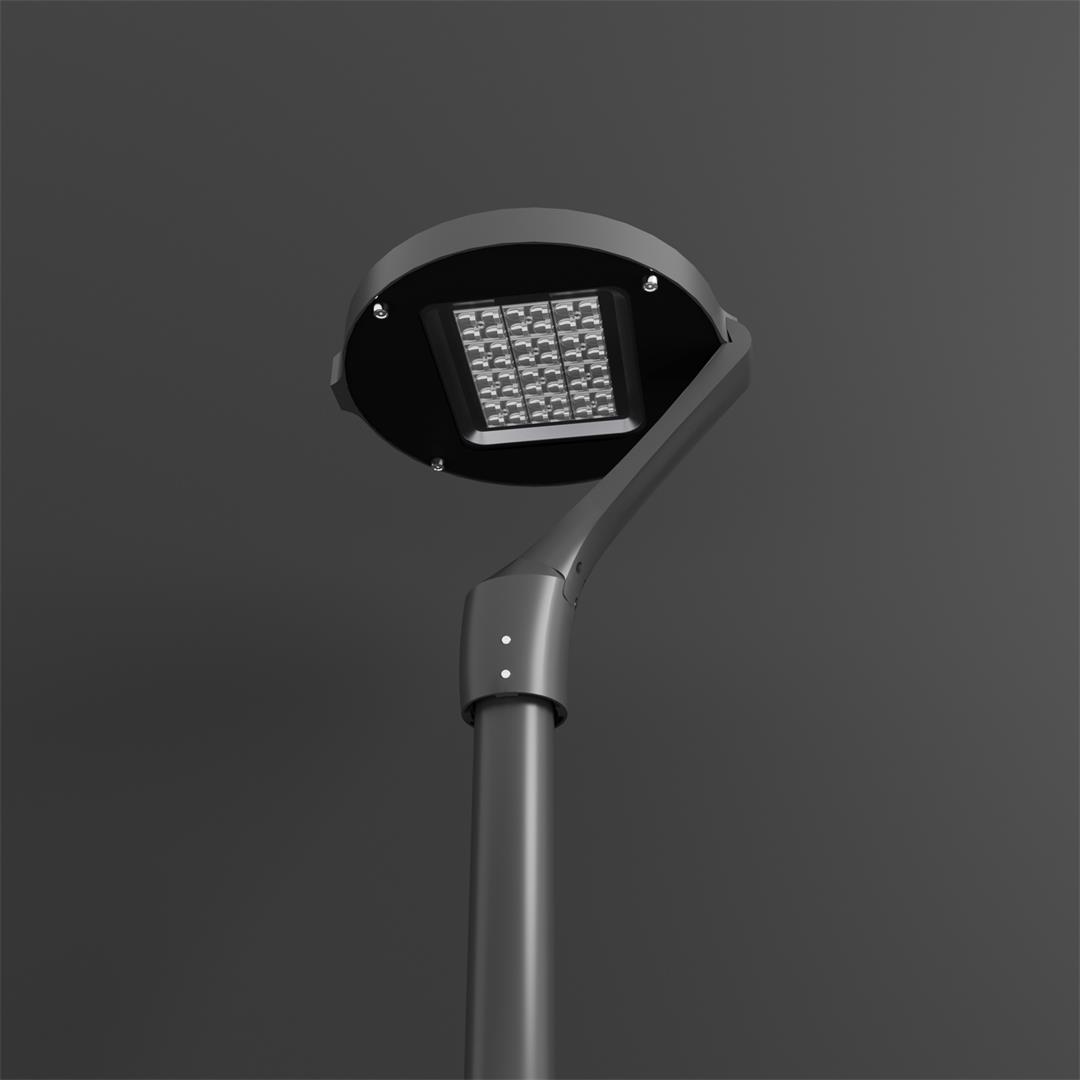

-Outdoor Post Top Light
-Die Cast Aluminium Housing Heatsink Within
-Pre - Treated Powder Coating for Corrosion Resistance
-PMMA Asymmetric Lens used
-Toughened Glass Used
-Silicone Rubber Gasket Used For Water Resistance
-SS304 Grade External & Internal Fasteners used for corrosion resistance
-Built - In IP68 Potted Control Gear Used
-MCPCB Used For Better Heat Dissipation
-High Power Leds Used for long life & good Thermal management

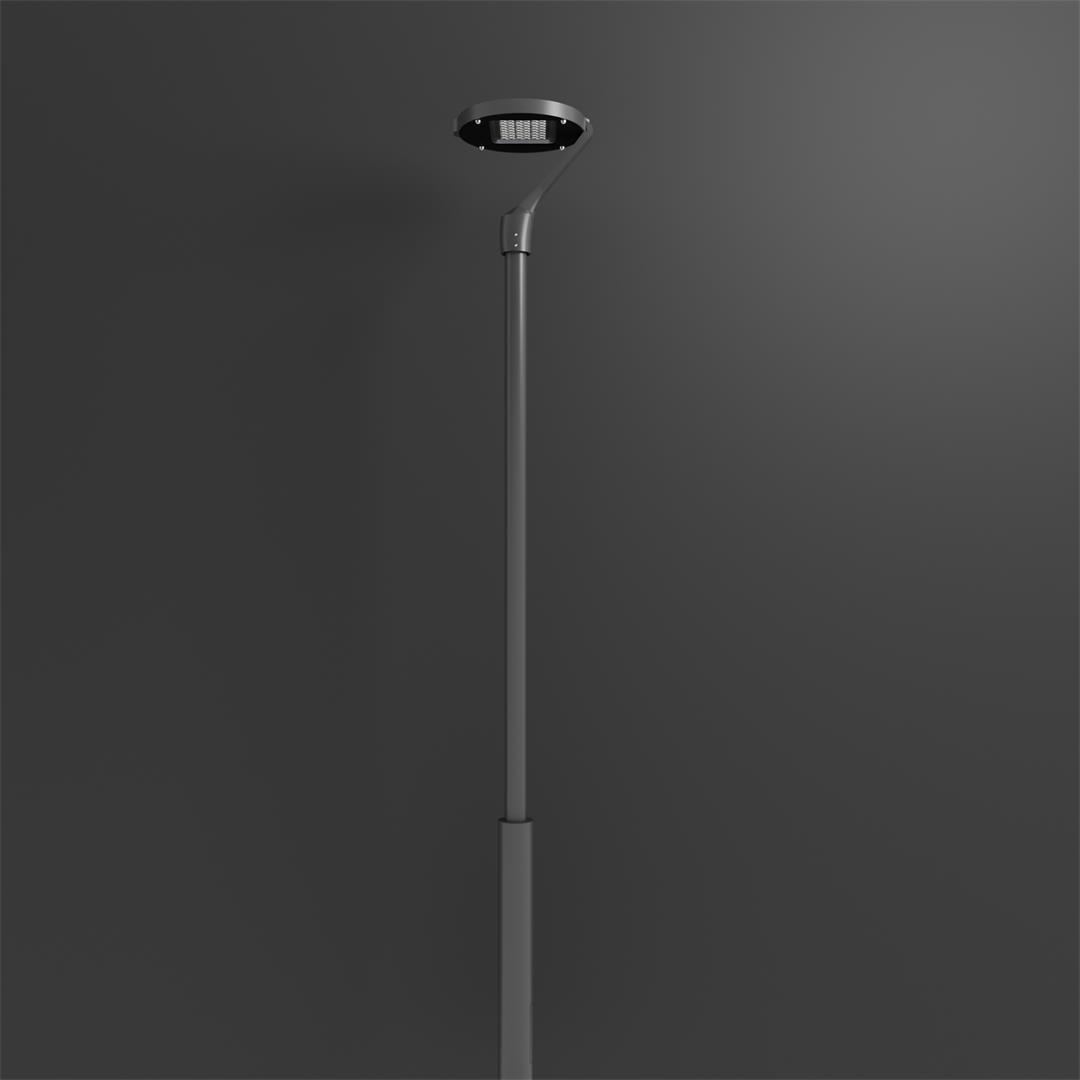

-Easy Installation on Pole
-Protection : IP65
USP
*Sleek Single Arm Designed Post Top Light For Wide Walkway & Drive way

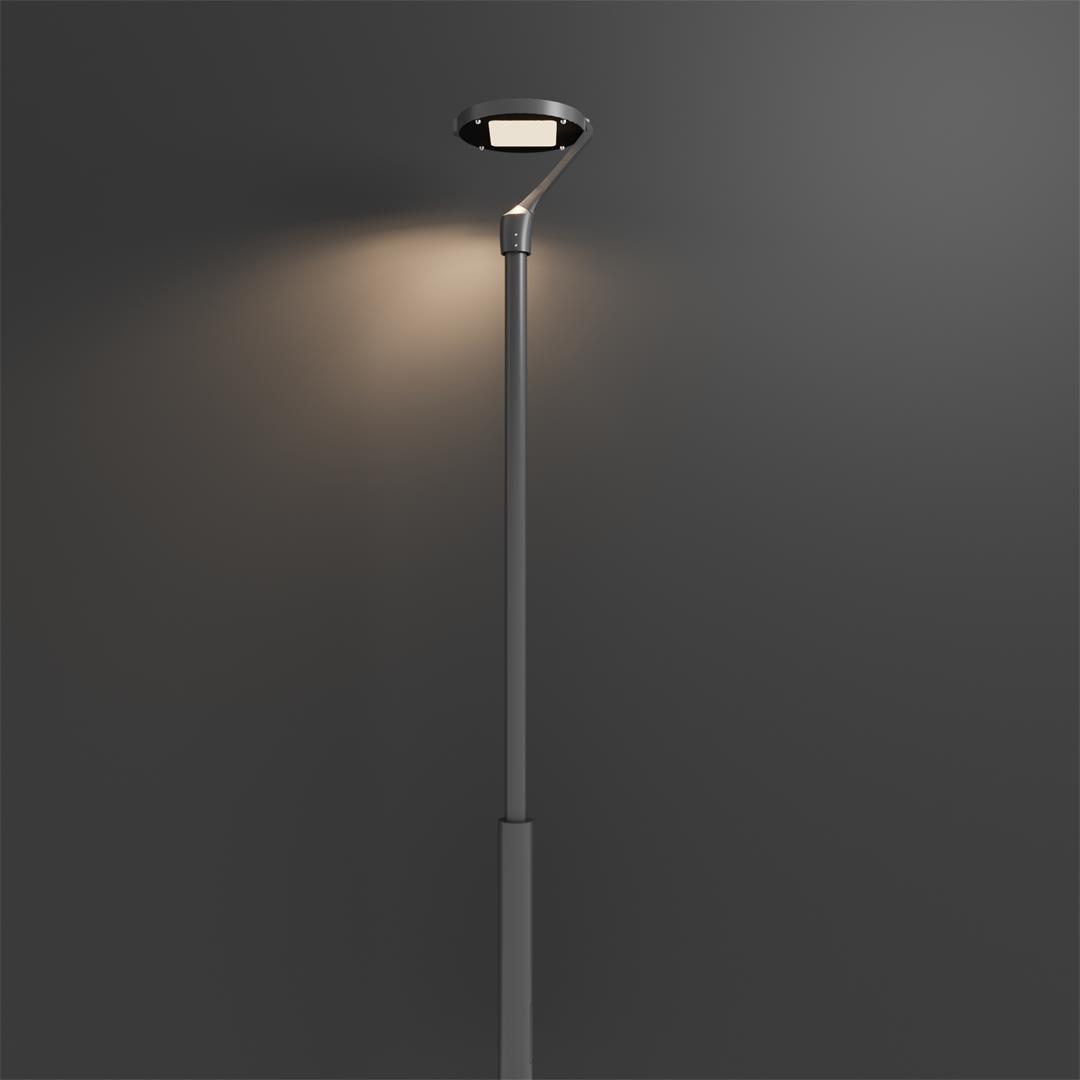

*Uniformly Placed Asymmetric Forward Throw Lens Throwing Light Forward

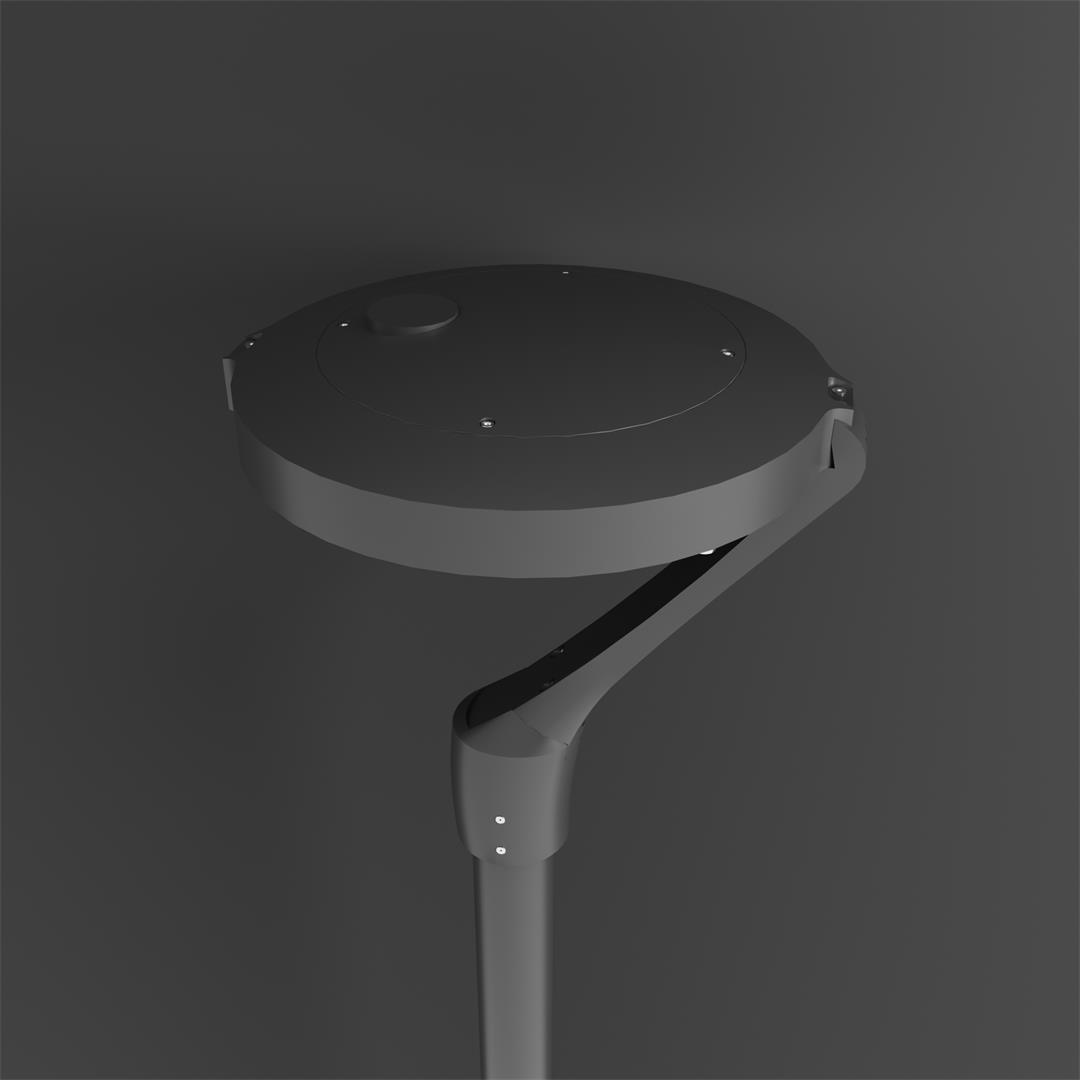

*Top Openable For Easy Driver Access on Serviceability
Mechanical Details
Material
| Outdoor |
| Material | Aluminum
|
|---|
| Finish | Black
|
Size

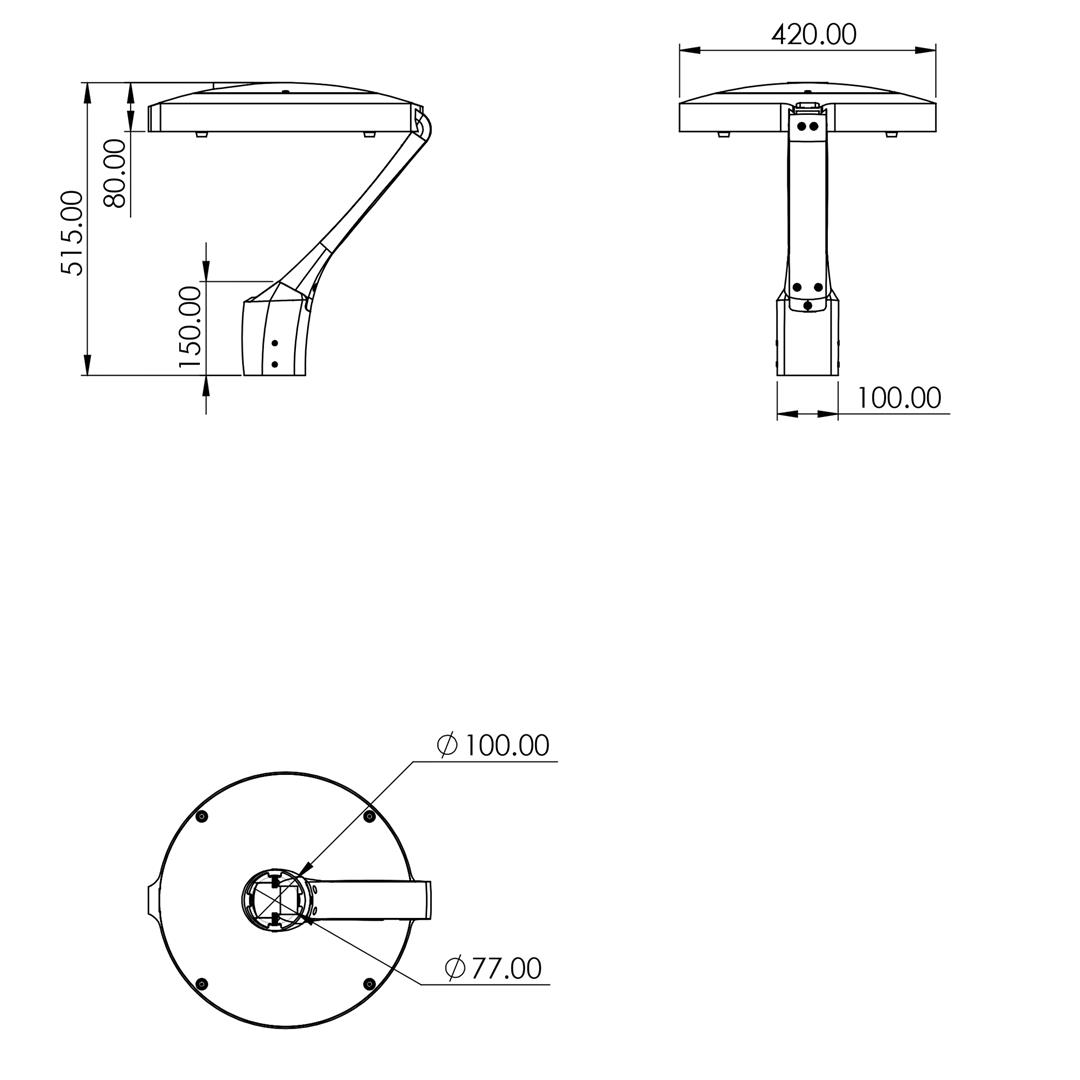

| Lamp : Ø420X536mm (Pole Holder ID - ø80 mm)

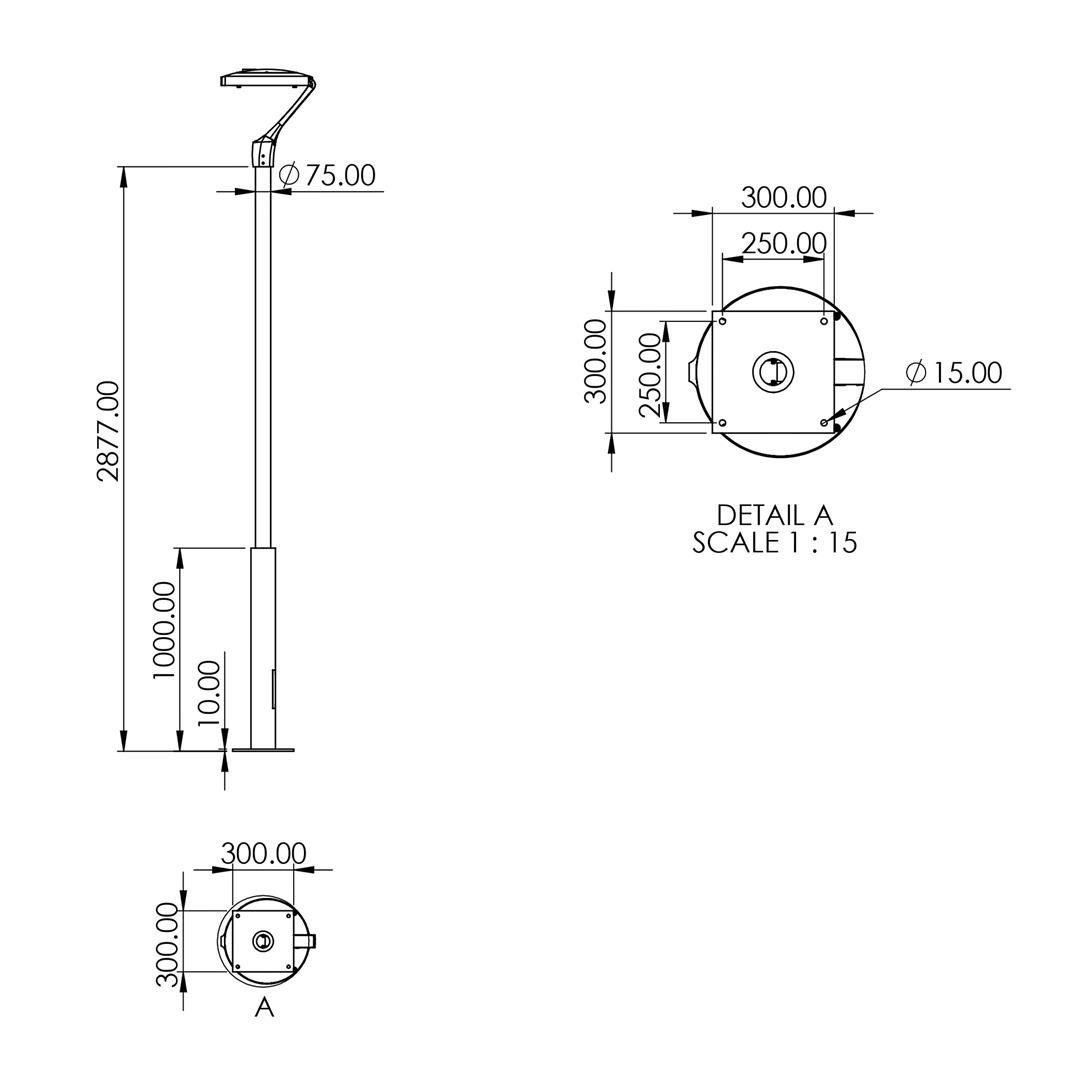

Suitable For Round pole - ø75mm Pole Base Plate : Sq300mm Thickness-10mm |
Lens
| PMMA Lens
|
Glass
| Toughened Glass
|
Fasteners
| SS 304 grade Internal & External fasteners
|
|---|
Cable
| High current carrying 3 core cable
|
|---|
Cable Entry
| Single Cable Entry
|
Cable Gland
| SS Cable Gland
|
|---|
Power Supply
| Built - IN IP68 potted power supply Used
|
|---|
IP Rating
| IP65
|
| Weight | Lamp: 6.9Kg Pole : 19.1Kg |
|---|
Technical Details
| Light Source | LED
|
| Input Power | 80W
|
| Color Temperature | 3000 / 4000K
|
| Lumen | 7600 / 7920 LM |
| Efficacy | 95 / 99 LM/W
|
| Beam Angle | H-118°XV-53°(Forward Throw)
|
| Input Voltage | 220 - 240 VAC
|
| Driving System | Constant Current
|
| Dimming Type | ON / OFF |
|---|
| CRI | 80+ |
|---|
| MacAdam | <3 |
|---|
| Operating Temperature | -10 to 50°C
|
| LED Life | L70 at 50000 burning Hours
|
|---|
| Safety Class | Class I |
|---|
| System Warranty | 1 Year |
|---|
H-118°XV-53°(Forward Throw)
Beam 360°
Luminous Flux

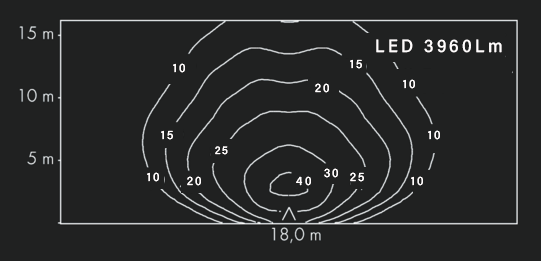

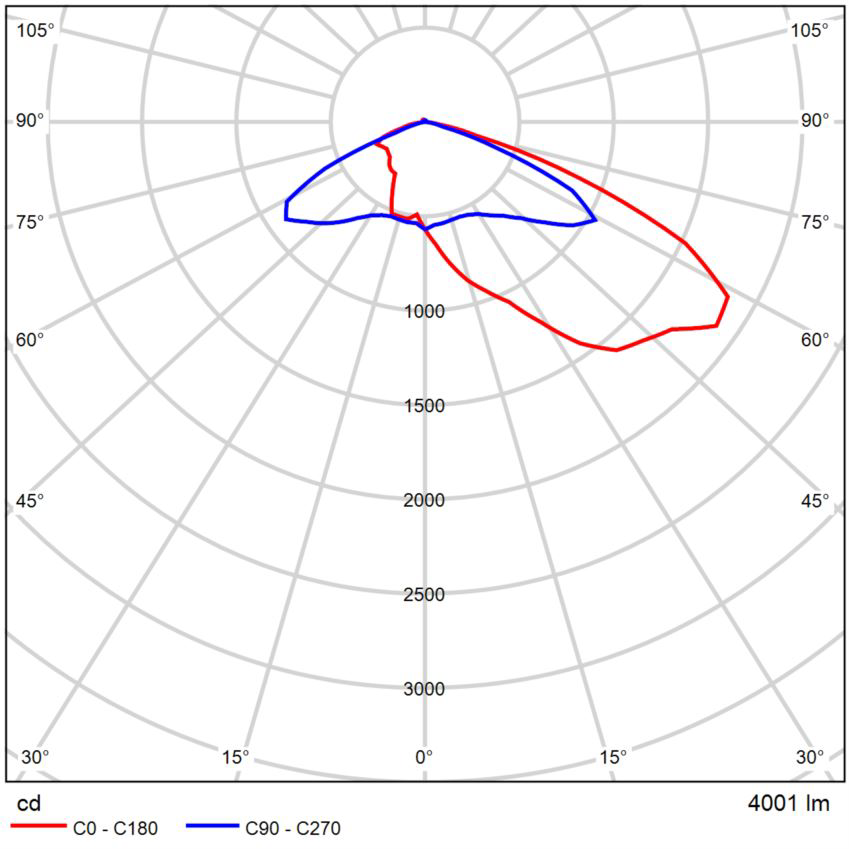

Light Distribution
| Model | Fixture Color
| Power(W)
| CCT(K)
| LUMINIOUS FLUX | BEAM ANGLE | Control
| IES File |
PT1X4253AL80FT30CC-
| AL-ALUMINIUM GREY
| 80
| 48 X 1.7W LED 3000K | 7600 lm | H-118°XV-53°(Forward Throw) | CC - Constant Current
| Single Cable
|
PT1X4253AL80FT40CC-
| AL-ALUMINIUM GREY
| 80
| 48 X 1.7W LED 4000K | 7920 lm | H-118°XV-53°(Forward Throw) |
CC - Constant Current
| Single Cable
|
Accessories
* J Anchor Bolt 150mm
* Base plate 300mm
* M685 IP68 Connector
* M685 IP68 Three Way Connector
